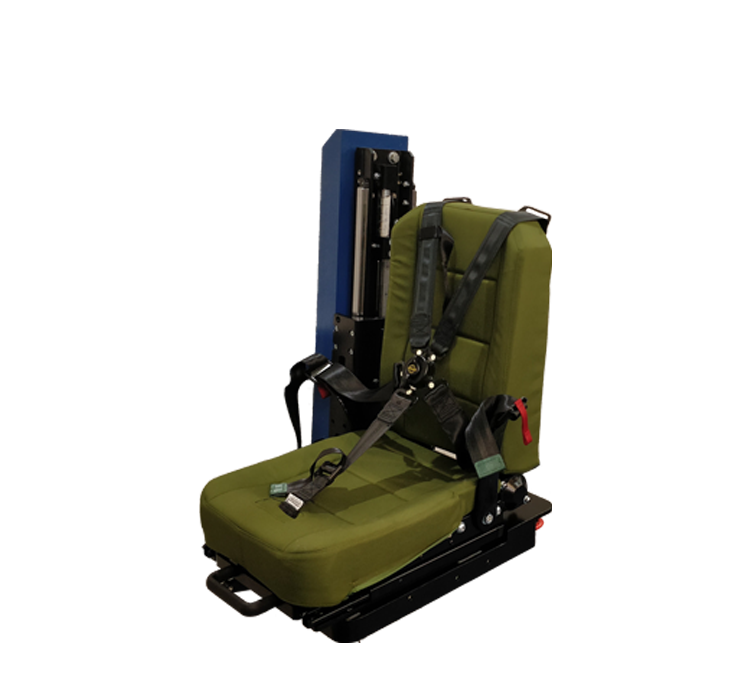

Super Narrow Seat
Designed for a slight body build, this super narrow driver position seat, is right-mounted and can be adjusted to a range of heights, as well as fore-aft adjustment and full back recline. It also incorporates multiple emergency safety features – for fast release.
INNOVATIVE
Mounting Options
Wall Mounting
Seat Belt
A certified 5 points seat-belt with retractors, specially designed for Mobius for the integration in the wall mounted seats.
5 points automatic seat belt, 2" harness, rotary buckle, manual adjustment for lap belt, ELR retractor (single sensitive - not influenced by angle or road vibration) for shoulder belts. Specifically designed with embedded stiffeners for increased ergonomic use
A different 4 or 5-point seat belt model can be incorporated as per Customer’s choice.
Adjustments
Fore-aft
Height adjustment

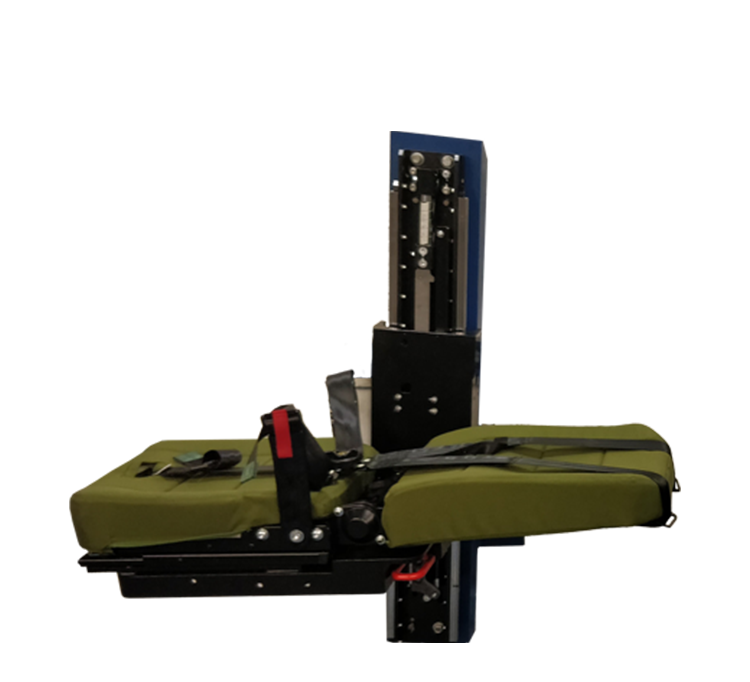

Back Recliner
Energy Absorption
The linear EA is a single element wall system, with a compact design and low weight. Typically located under a hatch, it is highly resilient to humidity, solar radiation and dirt.
Ergonomics
Shoulders and Lumbar supports
Super Narrow Model
The flexible and customizable system offers intuitive access to seat adjustment options, and easy ingress, and egress. The seat offers best-in-class performance in various operational scenarios by providing a comfortable ergonomic design and effortless operation of the vehicle controls.
Dimensions
Weight
50kg
Height adjustment
430mm
Fore-aft adjustment
220mm
Adjusmnets
Ergonomics
Ergonomic design suitable for 5th to 95th percentile
Mounting options
Wall, Right side mount.
Back Recliner option
85 degrees
Safety
Energy absorption
Mobius’s unique SPIRAL technology offers advanced Fixed Profile Energy Absorption with continuous self-adjusting dynamic attenuation,
Safety
Designed to meet FMVSS 207/210
Designed to meet ECE R14
Flammability – FMVSS 302
Compliance with other toxicity and flammability standard is optional.
Seat belts
A certified 5 points seat belt with retractors, specially designed for Mobius for the integration in the wall-mounted seats.
2″ harness, rotary buckle, manual adjustment for lap belt, ELR retractor (single sensitive – not influenced by angle or road vibration) for shoulder belts.
