Commander Seat
Designed for the commander position, the right-mounted crew seat can be adjusted to a wide range of heights, includes an adjustable and foldable ergonomic footrest, and enhanced side support. Additional features include fore-aft adjustment and full back recline as well as multiple emergency safety features – for fast release.
INNOVATIVE
Mounting Options
Wall, Right side mounting
Seat Belt
A certified 5 points seat-belt with retractors, specially designed for Mobius for the integration in the wall mounted seats.
5 points automatic seat belt, 2" harness, rotary buckle, manual adjustment for lap belt, ELR retractor (single sensitive - not influenced by angle or road vibration) for shoulder belts. Specifically designed with embedded stiffeners for increased ergonomic use
A different 4 or 5-point seat belt model can be incorporated as per Customer’s choice.
Adjustments
Adjustable seat height and tilt ensure an optimum seat
position and correct angle of view (certain models only).

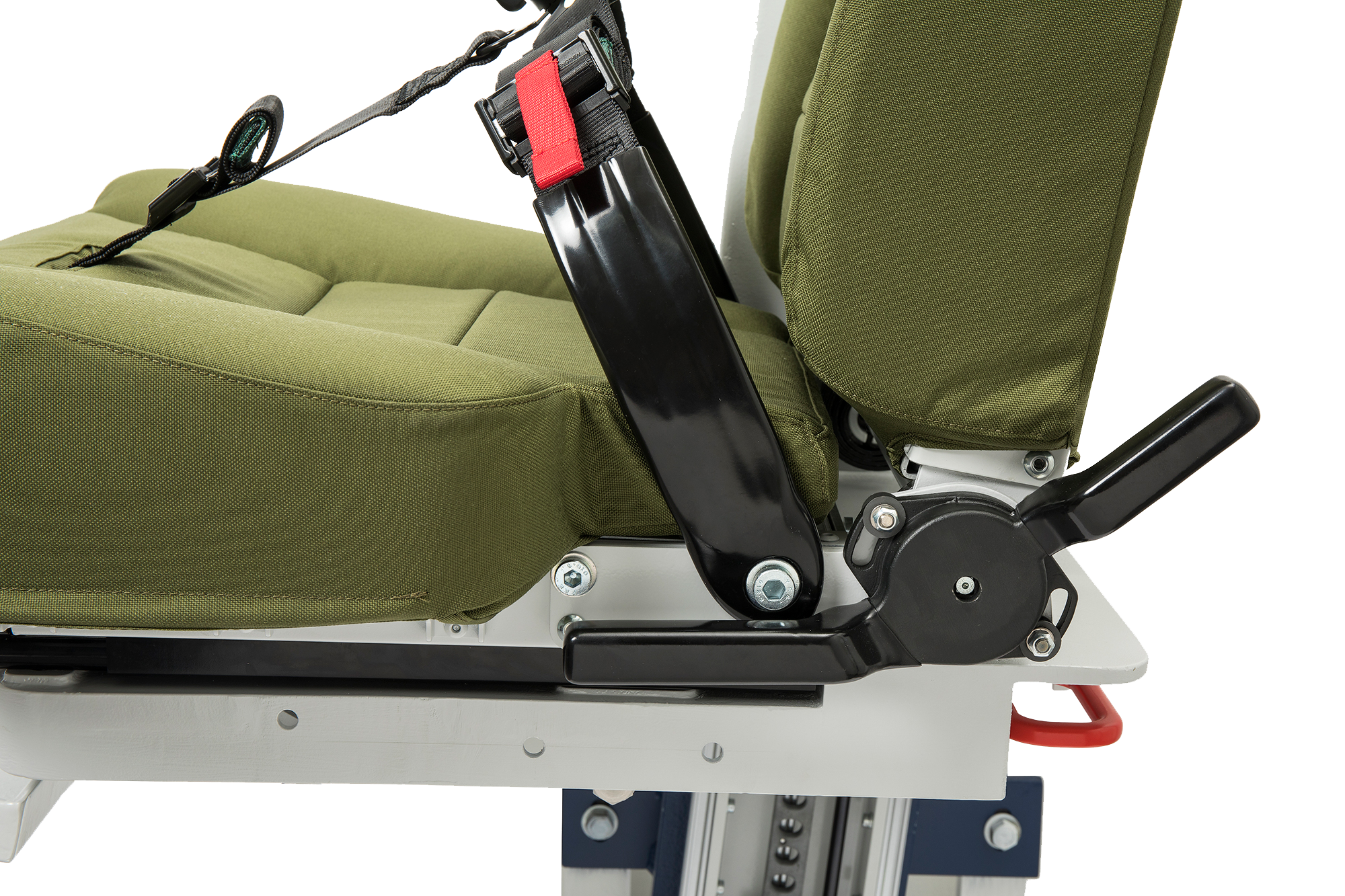

Fore-aft

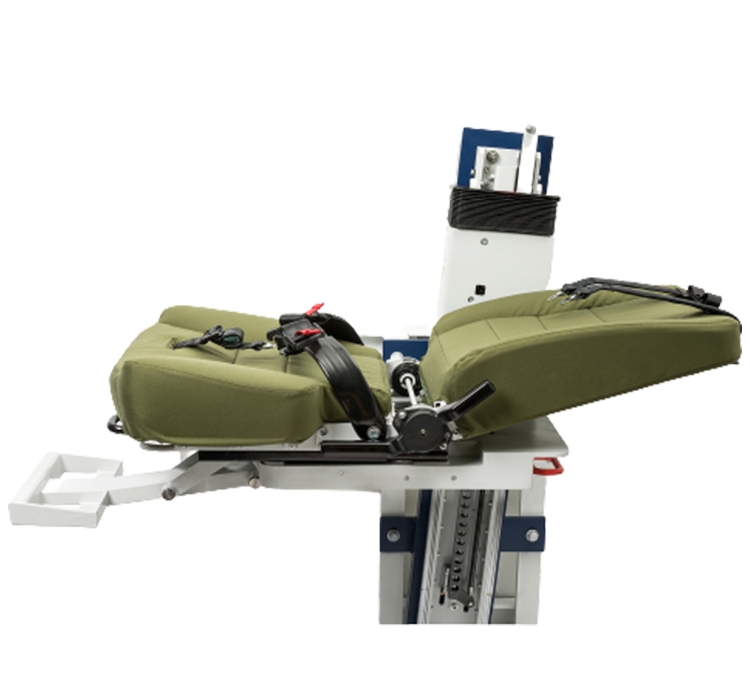

Full seat back recliner
Energy Absorption

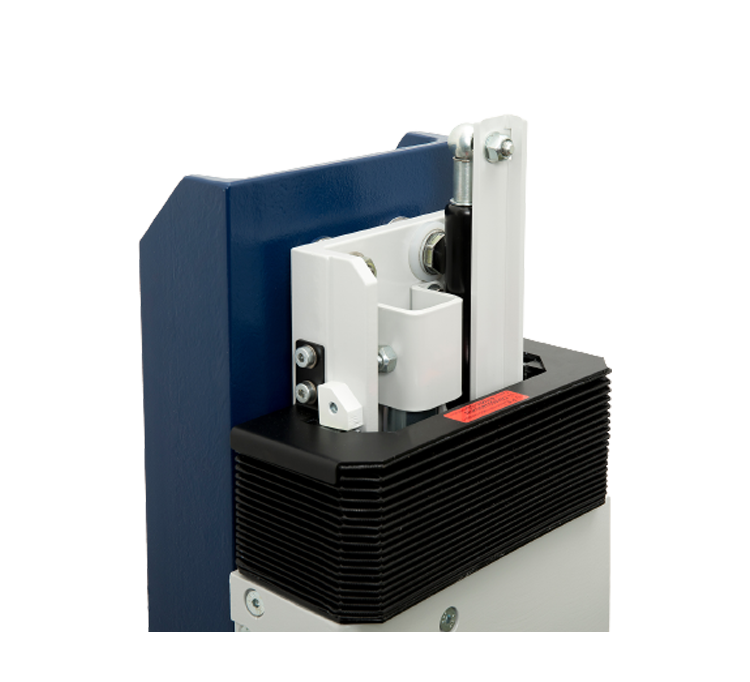

The linear EA is a single element wall system, with a compact design and low weight. Typically located under a hatch, it is highly resilient to humidity, solar radiation and dirt.
Ergonomics
Closed seat structure for improved upper body protection.
Ergonomic seat structure and upholstery design suitable to support body spine for 5th to 95th percentile occupants.
Special seat cushion design prevents submarine phenomena.
Extra-high backrest for optimal spinal support.
• Extendable seat cushion to ease the strain on your thighs.
• Perfectly shaped side bolsters of the seat cushion and
backrest for excellent lateral support.

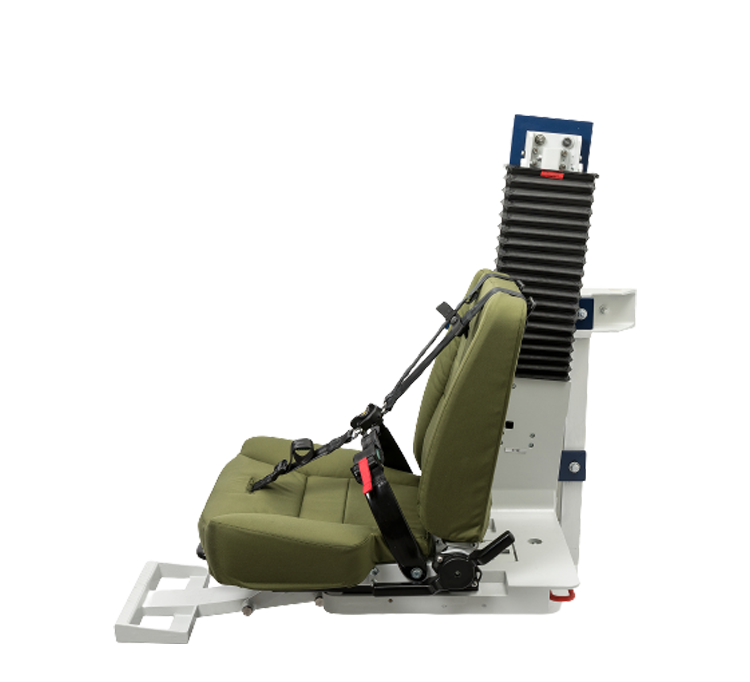

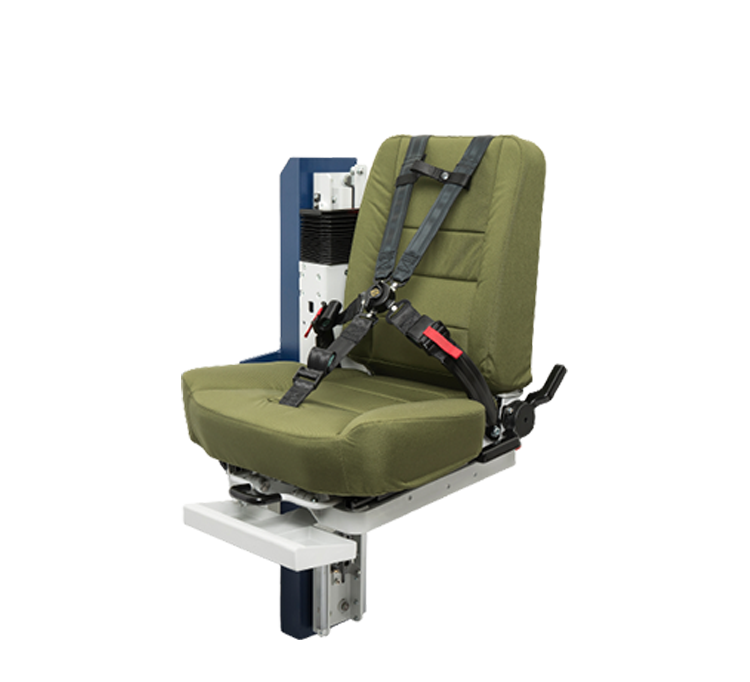

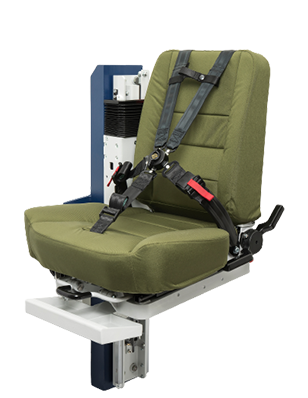

Wall mounted Commander seat
The flexible and customizable system offers intuitive access to seat adjustment options, easy ingress and egress, and emergency operation capabilities. The seat offers best-in-class performance in various operational scenarios by providing a comfortable ergonomic design and effortless operation of the vehicle controls.
Dimensions
Weight
53 kg
Height adjustment
430 mm
Fore-aft adjustment
6″
Adjusmnets
Ergonomics
Ergonomic design suitable for 5th to 95th percentile
Mounting options
Wall mount, Right hand
Additional adjustment options
85 degrees Back recliener
Safety
Energy absorption
Mobius’s unique SPIRAL technology
Safety
Designed to meet FMVSS 207/210
Designed to meet ECE R14
Flammability – FMVSS 302
Seat belts
5 points automatic seat belt, 2″ harness, rotary buckle, manual adjustment for lap belt, ELR retractor (single sensitive – not influenced by angle or road vibration) for shoulder belts.
