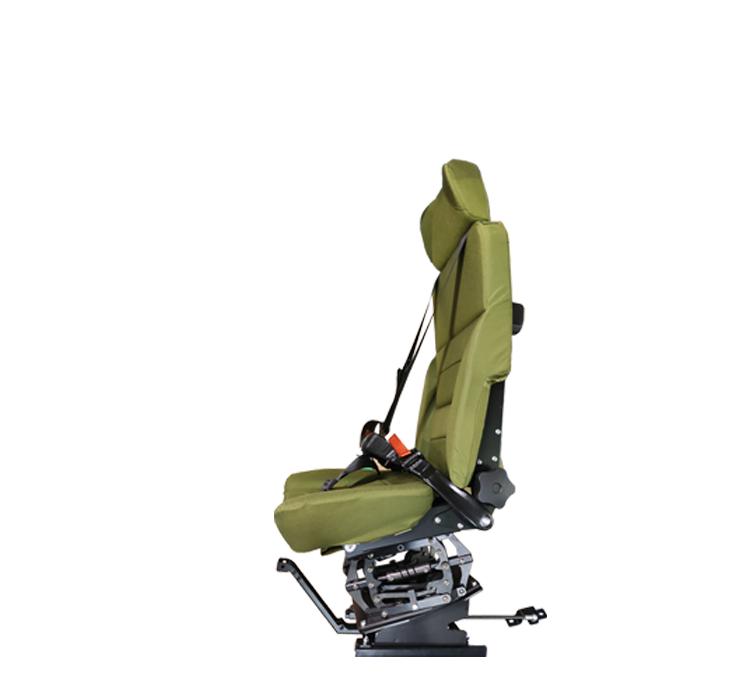

Advanced Crew Seat
The unique patented design system requires minimal space claim and is suitable when the floor-mounted configuration is the preferred approach. The customizable system offers a low sitting position with easy access to seat adjustment options, easy ingress, and egress. The seat offers best-in-class performance in various operational scenarios by providing a comfortable ergonomic design and effortless operation of the vehicle controls.
INNOVATIVE
Mounting Options
Floor Mounting
Designed for extreme scenarios in which a large amount of energy needs to be mitigated
Seat Belt
Seat belts are necessary to ensure blast protection as well as general safety during vehicle movement
4 or 5-point seat belts may be incorporated as per Customer’s choice
Adjustments
Fore- Aft
Seat Back Recliner to 180 degrees
Headrest Adjustment
Energy Absorption
Designed for extreme scenarios in which a large amount of energy needs to be mitigated, the floor system uniquely completely converts a vertical stroke into a horizontal stroke, minimizing the overall downward stroke of the seat

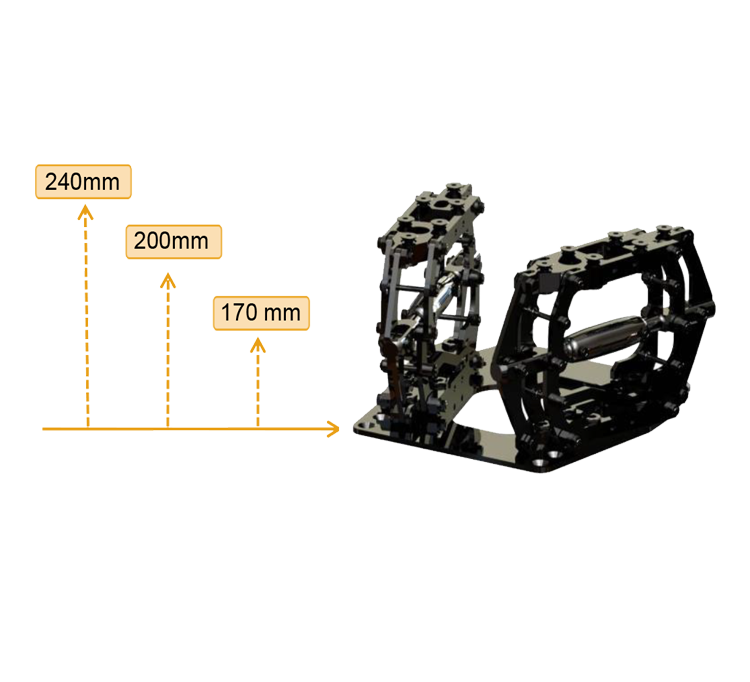

Seating Height Options
The floor system comes in 3 versions of height:
170 mm
200 mm
240 am
Ergonomics
Ergonomic design suitable for 5th to 95th percentile
Advanced Crew Seat
The flexible and customizable system offers a low sitting position with easy access to seat adjustment options, easy ingress and egress, and emergency operation capabilities. The seat offers best-in-class performance in various operational scenarios by providing a comfortable ergonomic design and effortless operation of the vehicle controls.
Dimensions
Weight
21-28 kg
Depends on the final configuration
Height adjustment
The floor system comes in 3 versions of height:
170 mm
200 mm
240 am
Fore-aft adjustment
150mm
Adjusmnets
Ergonomics
Ergonomic design suitable for 5th to 95th percentile
Mounting options
Floor mounting
Safety
Energy absorption
Mobius’s unique SPIRAL technology in a unique patented EA floor systm
Safety
Designed to meet FMVSS 207/210
Designed to meet ECE R14
Flammability – FMVSS 302
Seat belts
A certified 4 or 5 points seat belt
2″ harness, quick-release rotary buckle, Manual adjustment
